BURRIS MACHINE COMPANY, INC.
(828) 322-6914
On the Cutting Edge Since 1973
SCORE CUT PRODUCTS
Knife Holder Components
Please contact us for information and costs.
Click on a link below to see more detail about a specific product.
- Model 28 American (STANDARD) Knife Holders (KH)*
- Model 34 European Style Knife Holder (KH)*
- Model 32 Modified European Style KH with Shorter Side plates
- Holder Accessories for European or American Styles
- Replacement Parts for Knife Holder
- Air Hose Assemblies
- Replacement Parts for Air Hose Assemblies
- Bearings & Axles for Circular Blades
- Circular Blades
- Miscellaneous
For your convenience, view our Knife Holder Parts Replacement Instructions page to learn how to disassemble your Knife Holder for replacement or maintenance.

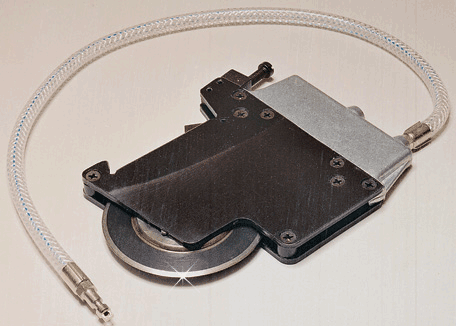

Model 28 American (STANDARD) Knife Holders (KH)*
|
Can hold a 3" blade. These are bare KH units only. Visit our Common KH configurations page to view common configurations with parts like blade, bearing, axle, hose... |
 |
|||
| Part # | Description | Details | Photo | Specs |
| 5041 | ½” KH (Standard American) | view | pdf (44k) | |
| 5041- HE | ½” KH, Protective coated for HE* (hostile environment) | view | ||
| 5042 | 12mm Knife Holder | view | ||
| 5043 | ½” Knife Holder – Back Pullout | view | pdf (44k) | |
| 5044 | 12mm Knife Holder – Back Pullout | view | pdf (44k) | |
| 5045 | 10mm Knife Holder | |||
| 5046 | 3/8” Knife Holder | |||

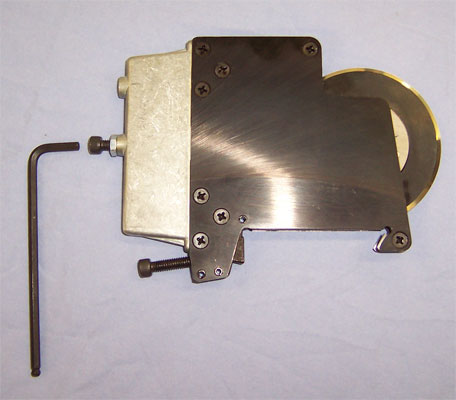

| 5047 | ½” KH, Manual-adjust | view | view | pdf (44k) |
| 5048 | 12mm KH, Manual-adjust | view | ||
Model 34 European Style Knife Holder (KH)*
|
Can hold a 3" or 4" blade. Bare KH holders only; pick customized items to include from our Custom KH configurations page. |
 |
|||
| Part # | Description | Details | Photo | Specs |
| 5034-B | ½” Knife Holder (Standard European) | pdf (45k) | ||
| 5035 | 12mm Knife Holder | |||
| 5036 | ½’ KH, Back Pullout | view | pdf (894k) | |
| 5037 | 12mm KH, Back Pullout | view | ||
Model 32 Modified European Style KH with Shorter Side plates
|
Can hold a 3" blade only. Bare KH holders only; pick customized items to include from our Custom KH configurations page. |
 |
||
| Part # | Description | Photo | Specs |
| 5032 | ½ “ KH | pdf (47k) | |
These terms apply to all Knife Holders described above:
*Knife Holder fully assembled includes axle, bearing, blade & air hose assembly. Choose yours from the Common Configurations page or Custom Configurations page.
*HE = Hostile Environment - Protective coated
*Back Pullout = special piston fork & side plates allow removal of blade/bearing/axle without loosening or removal of Knife Holder from the Dovetail Bar
Holder Accessories for European or American Styles
| Go to the Knife Holders section for more information | ||||
| Select accessories to customize your KH configuration. Feel free to contact us if you have any questions. |  |
|||
| Part # | Description | Details | Photo | Specs |
| 5050 | Quick Clamp (purchased in holder) US patent #5,373,642 | view | pdf (44k) | |
| 5051 | Quick Clamp (purchased separately) US patent #5,373,642 | view | view | |
| 5054-B | Razor Blades – Carbon steel | view | pdf (1M) | |
| 5054-H | Razor Blade Holder - Adapter | view | view | pdf (35k) |
| 5054-G | Razor Blade Safety Guard for Above Adapter | view | pdf (56k) | |

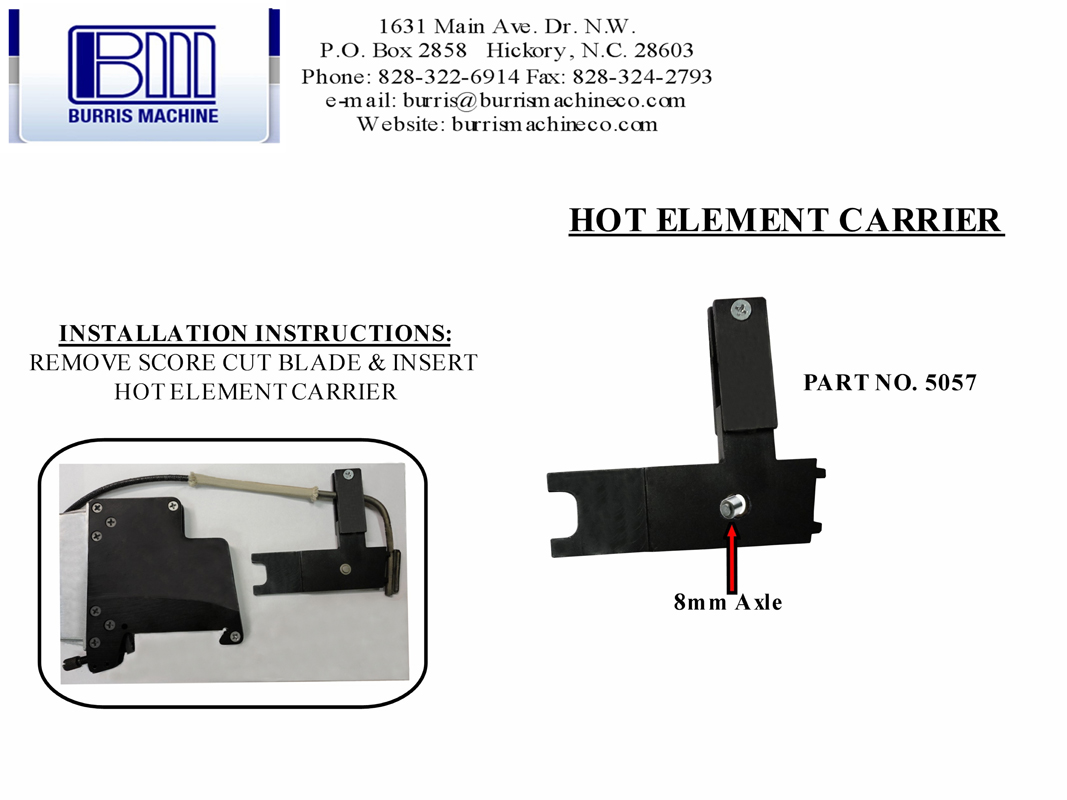

| 5057 | Hot Cut Element Carrier (No Element) | view | view | pdf (957k) |
| 5058 | Hot Cut Element -- 90 watt, 120 watt or 140 watt | view | view | pdf (33k) |

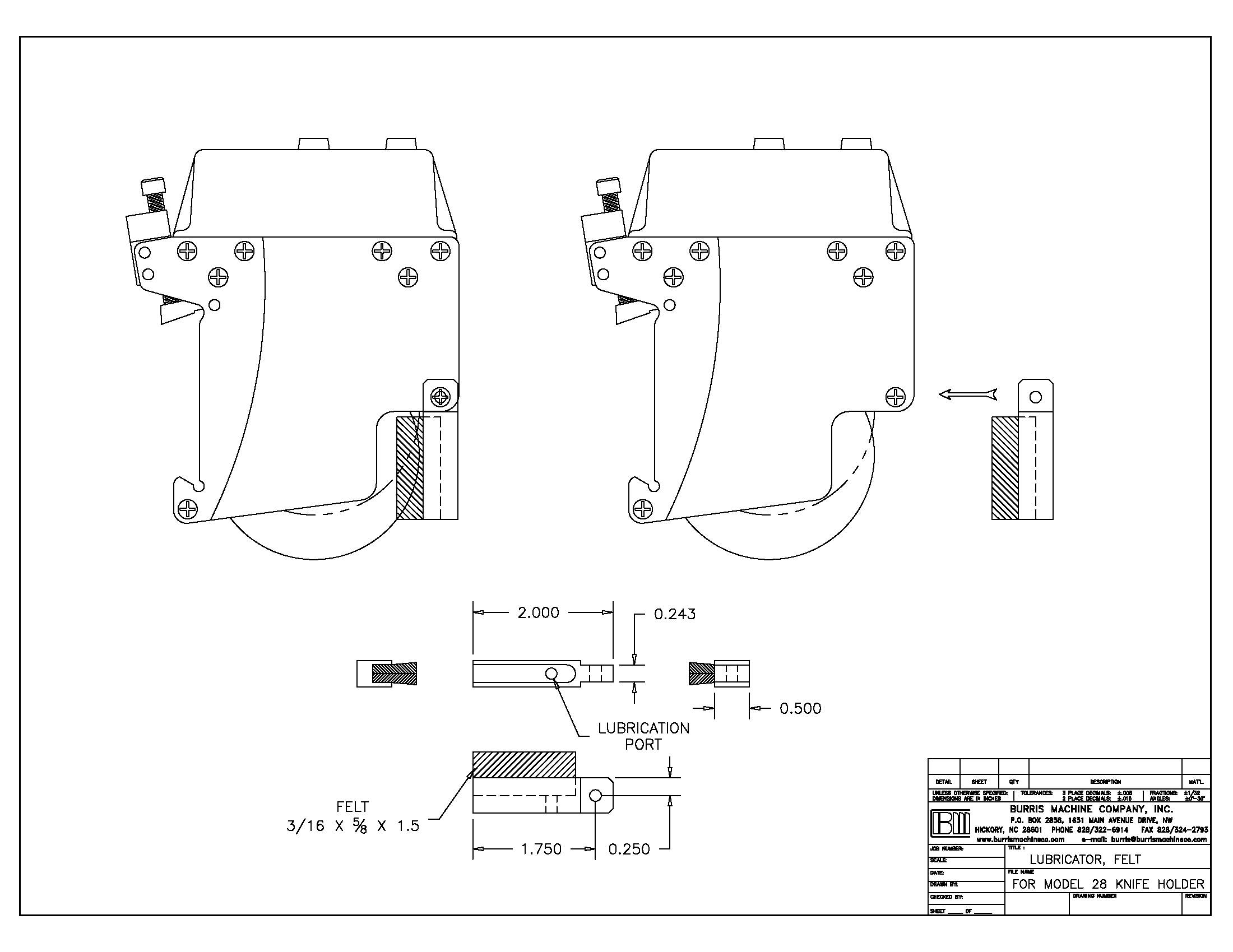

| 7090 | Blade Lubricator Attachment | view | view | pdf (47k) |

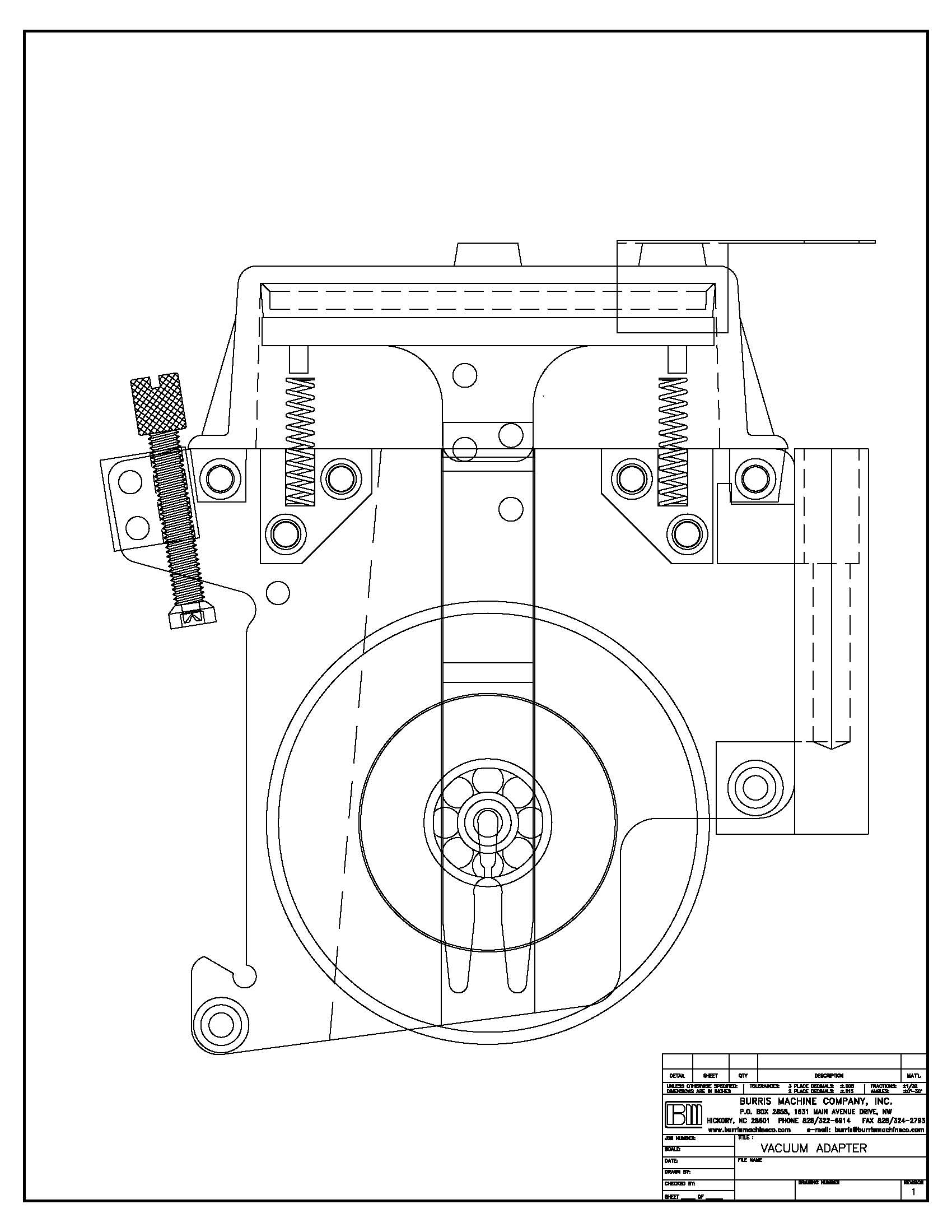

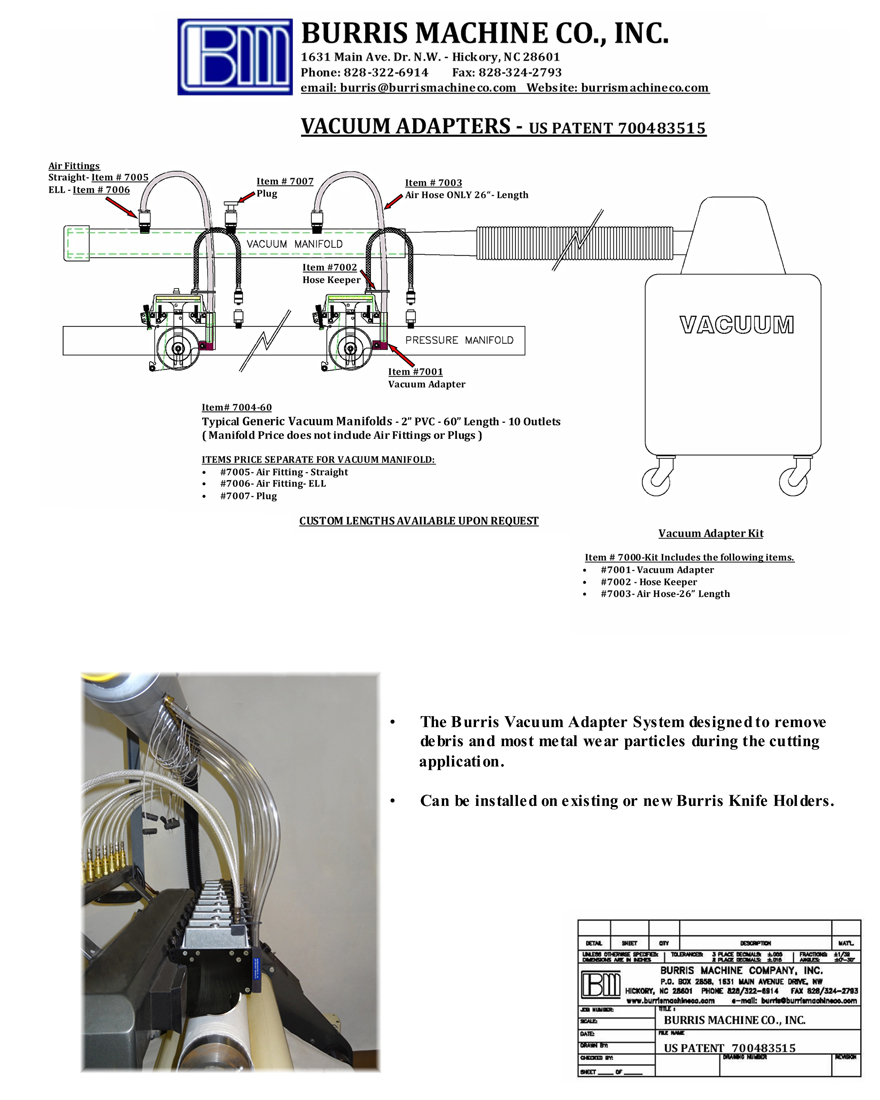

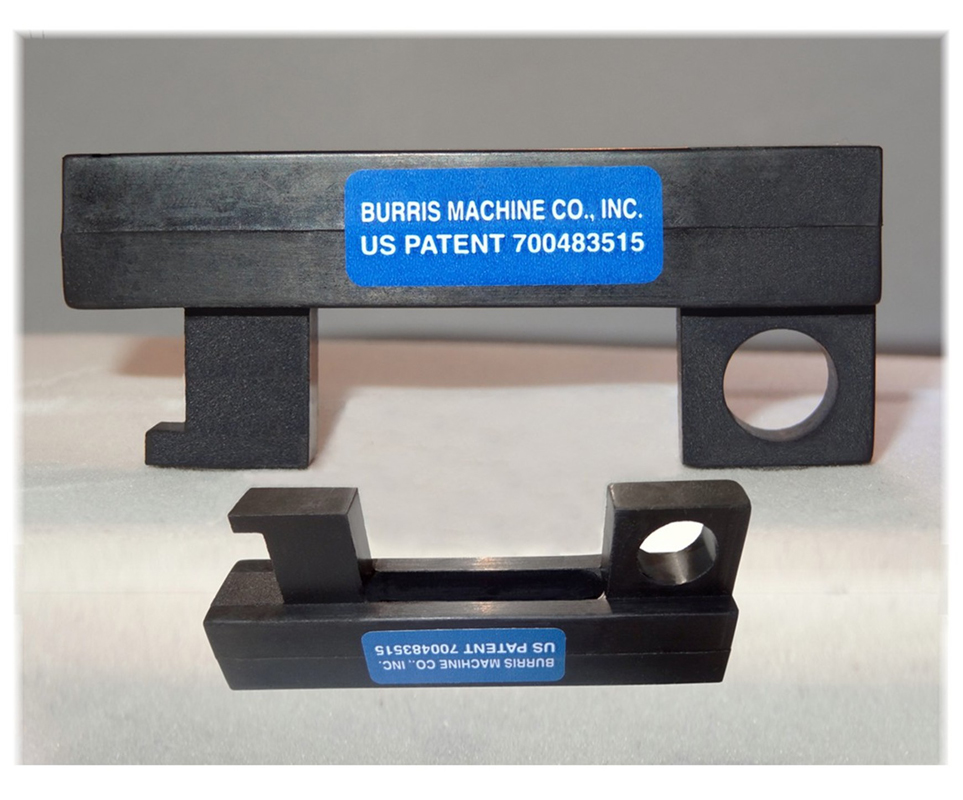

| 7001 | Vacuum Adapter, US Patent 700483515 | view | view | pdf (246k), pdf (244k) |

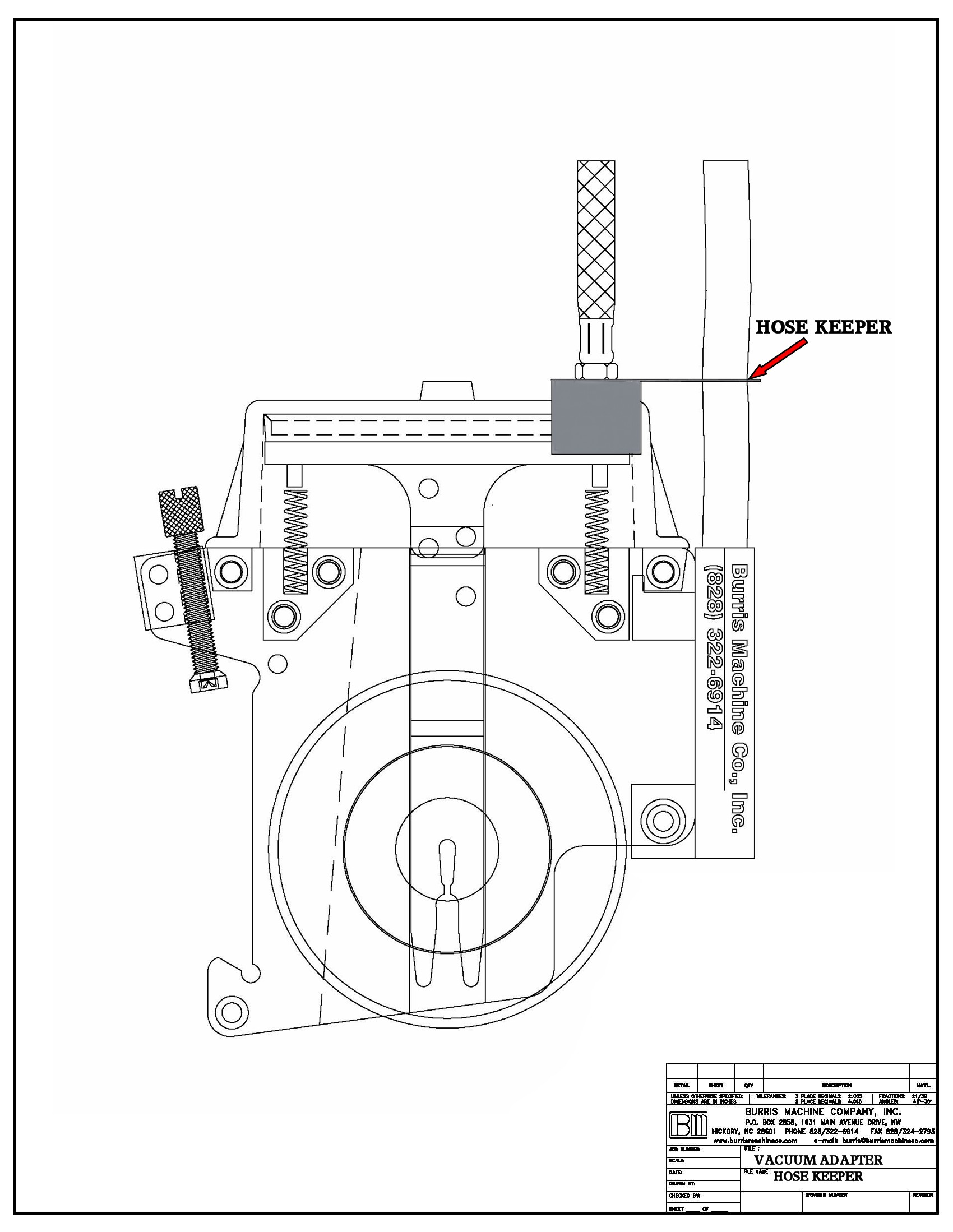

| 7002 | Vacuum Hose Keeper | view | pdf (338k) | |
| 7003 | Vacuum Air Hose, 26” | view | pdf (2M) | |
| 700-kit | Vacuum Adapter Kit (includes 7001, 7002, 7003) | view | pdf (2M) | |
| 7004-60 | Vacuum Manifold, generic 60” | view | pdf (2M) | |
| Note: Manifold can be custom-ordered | ||||
| 7005 | Vacuum Air Fitting - Straight | view | pdf (2M) | |
| 7006 | Vacuum Air Fitting - ELL | view | pdf (2M) | |
| 7007 | Vacuum Air Plug | view | pdf (2M) | |
Replacement Parts for Knife Holder
| Email or Call to Request a Quote.
Order replacement parts for your Knife Holder or contact us if you have any questions. |
 |
||
| Part # | Description | Photo | Specs |
| 2001 | Piston Fork Assembly (Standard) | view | |
| 2002 | Piston Fork Assembly – Back pullout | view | |
| 2037 | Piston Cup for ½”, 12 mm KH | view | |
| 2037-A | Piston Cup for 10mm, 3/8” KH | view | |
| 2040 | Spring | view | |

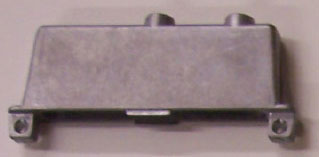

| 2046-A | Cylinder Housing for 10mm & 3/8” KH | view | |
| 2046-B | Cylinder Housing for ½” & 12mm KH | view | |
| 1035 | Clamp Screw Bracket | view | |
| 1038 | Wire Holder Bracket with Wire | ||
| 1041 | Stop Block | view | |
| 1044 | Clamp Pawl | view | |
| 1050-A | Spacer for 3/8”, 10mm KH | view | |
| 1050-B | Spacer for ½”, 12mm KH | view | |
| 1056 | Spring / Roll Pin | view | |
| 1059 | Flat Head Screw | view | |
| 1062 | 1 ½” Fillister Head Screw | view | |
| 1063 | 2” Fillister Head Screw | ||
| 1065 | Socket Head Screw | view | |
See Repair Kits (with popular parts components)
Air Hose Assemblies
|
Includes all hose components, braid-enforced pvc air hose unless stated, 18" length unless other length requested.
Click here to view a photo of all Air Hose Assemblies (pdf, 62k). Feel free to contact us if you have any questions. |
 |
||
| Part # | Description | Photo | Specs |
| 3003- BB | American/Standard, male coupling | view | |
| 3003- F | American/Standard, male/ female coupling | view | |
| 3004- FSS | American/Standard, stainless steel hose, male/ female coupling | ||
| 3004- SS | American/Standard, stainless steel hose, male coupling | view | |
| 3006- BB | European, male coupling | view | |
| 3006- F | European, male/ female coupling | view | |
| 3007- SS | European, stainless steel hose, male coupling | ||
| 3007- FSS | European, stainless steel hose, male/ female coupling | ||
Replacement Parts for Air Hose Assemblies
| Order replacement parts for your Air Hose Assembly or contact us if you have any questions. |  |
||
| Part # | Description | Photo | Specs |
| 3009 | Hose Barb (¼ - 32) | view | |
| 3012 | Ferrule | view | |
| 3015 | Air Hose, braided pvc -priced by the foot | view | |
| 3016 | Air Hose, Stainless Steel -priced by the foot | ||
| 3018 | Male Coupling (American/Standard) | view | |
| 3021 | Male Coupling (European) | view | |
| 3024 | Female Coupling (American/Standard) | view | |
| 3027 | Female Coupling (European) | view | |
Bearings & Axles for Circular Blades
| Select Bearings & Axles to customize your KH configuration. Feel free to contact us if you have any questions. |  |
||
| Part # | Description | Photo | Specs |
| 4003 | Bearing 19mm, Shielded | view | |
| 4003-R | Bearing 19mm, Rubber Sealed, Shielded | ||
| 4004 | Bearing 19mm, Shielded, narrow width 5mm size for 10mm & 3/8” KH | ||
| 4006 | Bearing 22mm, Open | view | |
| 4007 | Bearing 22mm, Shielded | view | |
| 4007 -R | Bearing 22mm, Rubber Sealed, Shielded | view | |
| 4008 | Axle -6mm, for 10mm & 3/8” KH | ||
| 4009 | Axle -8mm for 22mm bearing/blade, for ½” or 12mm KH | view | |
| 4012 | Axle -6mm for 19mm bearing/blade, for ½” or 12mm KH | view | |

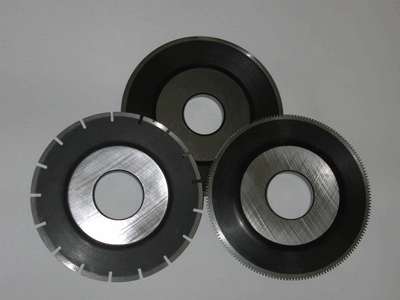

Circular Blades
| Select Circular Blades to customize your KH configuration. Feel free to contact us if you have any questions. |  |
|
| Part # | Description | Specs |
| 4001 | Special Order Blades -- miscellaneous | |
| 4001- 3/8 | 3” Score cut Blade, special for 10mm or 3/8” KH, 19mm, 45 degrees | |
| 4001- CORE | Special Small Blade | |
| 4001- PF | 3” Perforating Blade | pdf (44k) |
| 4001- PK | 3” Pinking Blade | pdf (40k) |
| 4019 | 3” Score cut Blade, 19mm, 45 degrees (standard) | pdf (40k) |
| 4019-40 | 3” Score cut Blade, 19mm, 40 degrees | |
| 4019-60 | 3” Score cut Blade, 19mm, 60 degrees | |
| 4019-D2 | 3” Score cut Blade, 19mm, 45 degrees, D2 tool steel | |
| 4022 | 3” Score cut Blade, 22mm, 45 degrees (standard) | pdf (40k) |
| 4022-30 | 3” Score cut Blade, 22mm, 30 degrees | |
| 4022-30-T | 3” Score cut Blade, 22mm, 30 degrees, Thin Rim | |
| 4022-45-T | 3” Score cut Blade, 22mm, 45 degrees, Thin Rim | |
| 4022-60 | 3” Score cut Blade, 22mm, 60 degrees | |
| 4022-90 | 3” Score cut Blade, 22mm, 90 degrees | |
| 4022-D2 | 3” Score cut Blade, 22mm, 45 degrees, D2 tool steel | |
Miscellaneous
| For more information go to the Knife Service Tools & Repair section | ||||
 Add these miscellaneous items to any order. Feel free to contact us if you have anyquestions. |
 |
|||
| Part # | Description | Details | Old Part # | Photo |
| 6000 | Silicone Lubricant | 2039 | ||

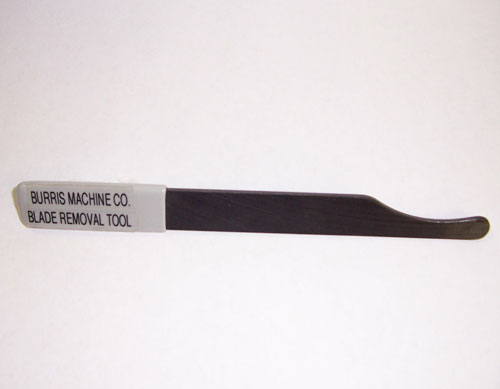

| 6020 | Blade Removal Tool | view | 4020 | view |
| 6030 | Knife Holder Servicing Combo Tool | view | view | |

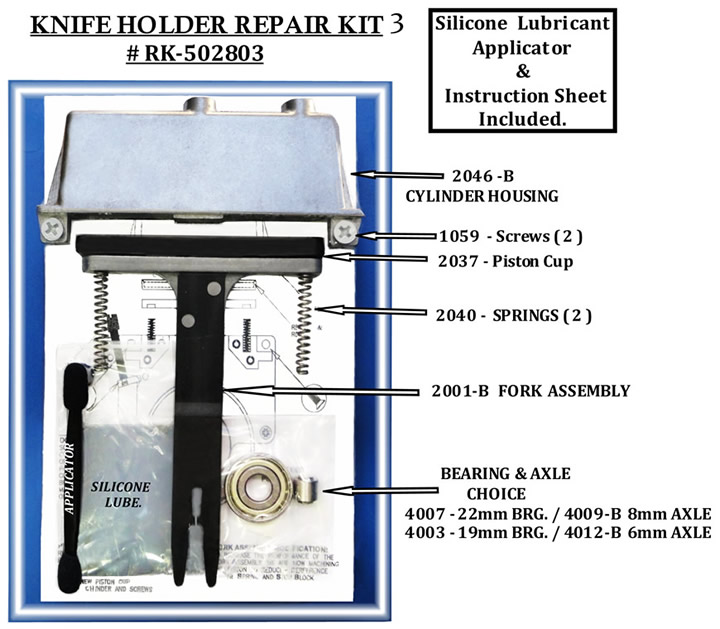

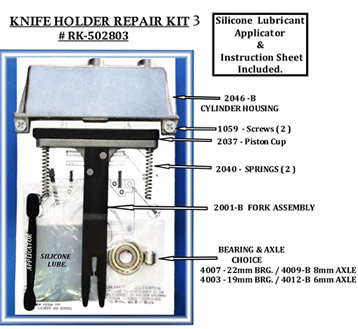

| RK-502801 | Knife Holder Replacement Parts Kit 1 | view | ||
| RK-502802 | Knife Holder Replacement Parts Kit 2 | view | ||
| RK-502803 | Knife Holder Replacement Parts Kit 3 | view | ||
